MDP-DC1900WD Product Guide.
TOPR

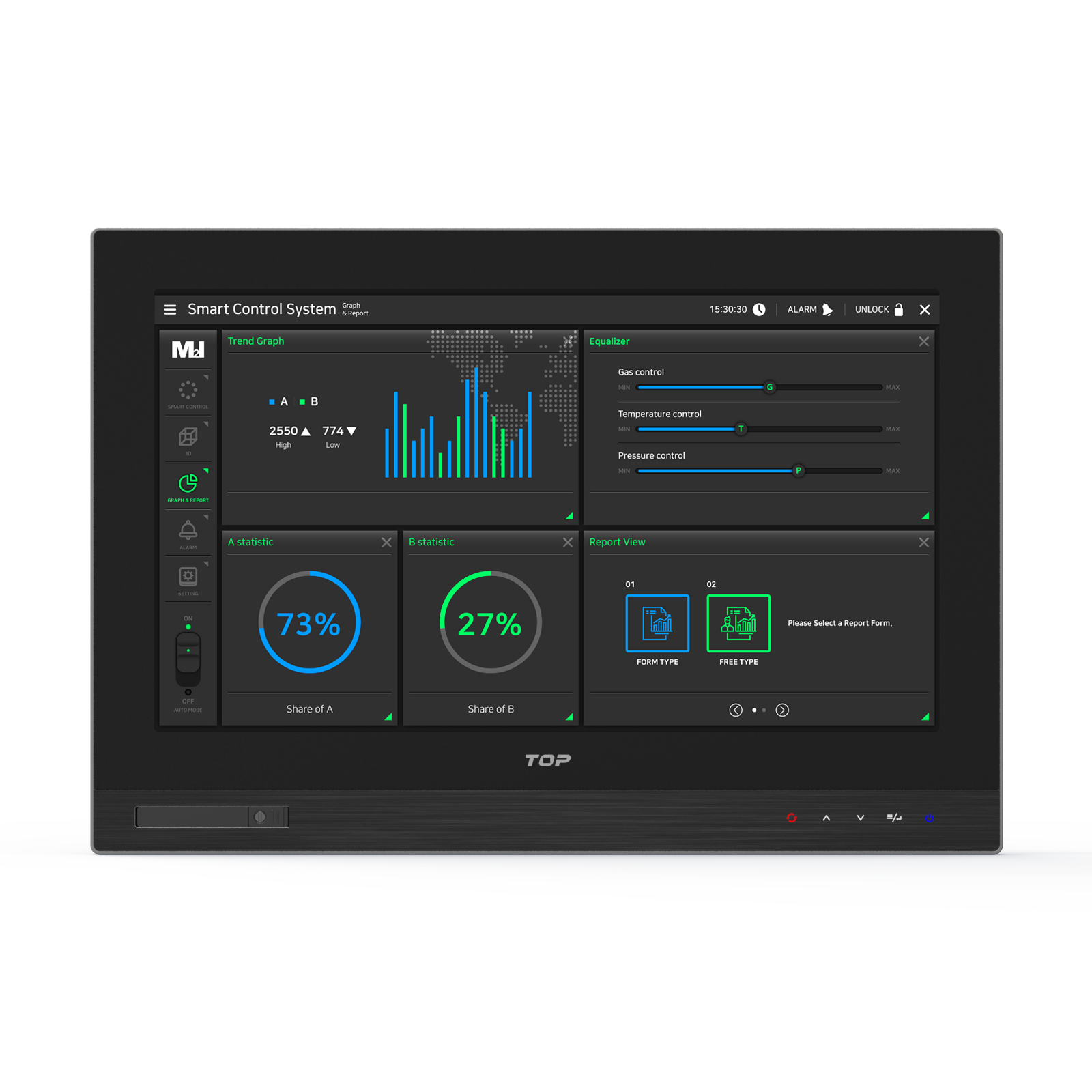

MDP-DC1900WDTouch Monitor
Certification
KS CE
Features
  • icon
    2 Channels / 1 Channel Model Selective

    Display Change by Switching Button

  • icon
    Explosion Proof Structure

    Korea’s 1st Explosion Proof Structure Monitor

  • icon
    Capacitive Touch Sensor

    Clear Display with Capacitive Touch Sensor

  • icon
    FHD LCD

    16 : 9, 19 inch, FHD LCD(1920 x 1080)

  • icon
    Front USB Port

    USB Port for Mouse, Keyboard, USB Memory, and Barcode Scanner

  • icon
    Aluminum Frame

    Aluminum body with outstanding durability and splendid design

  • icon
    HDMI / DP / USB

    2 Channels (HDMI 2 ports, USB 5 ports)
    1 Channel (HDMI 1 port, DP 1 port, USB 2 ports)

  • icon
    VESA Hall On Rear Side

    Convenient attachment with M2I’s box HMI and box PC

Specifications

You can check the detailed specifications of the product in the catalog.

Display
Type: 18.5" TFT Color
Color: 16M Colors
Resolution: 1920 x 1080
Aspect Ratio: 16:9
Brightness: 350Cd/m2
Touch
Capacitive Touch
Touch Button
KVM, Up, Down, Menu, Select/Power

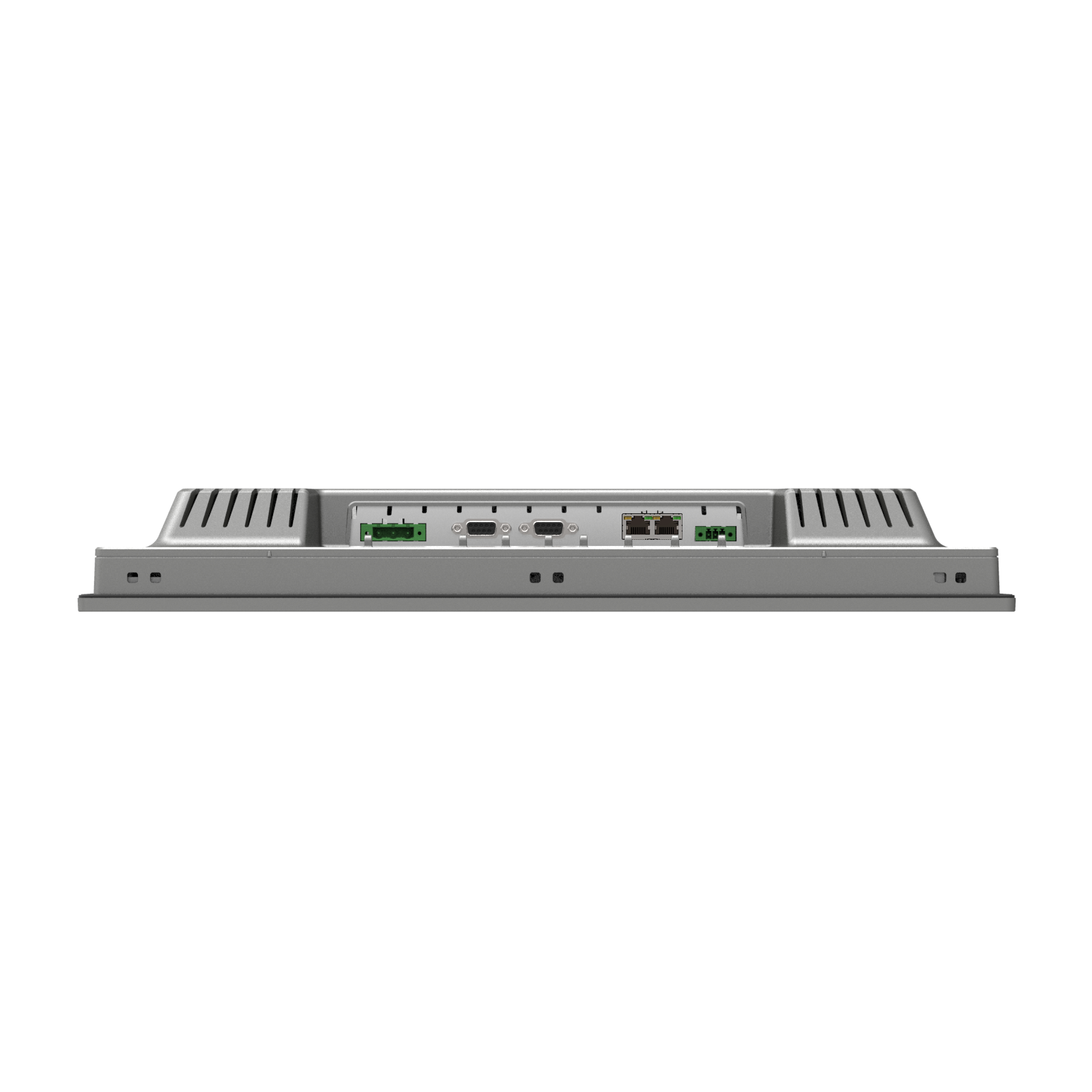

Interface
HDMI Input 2 Ports, USB A Type 2 Ports, USB B Type 2 Ports
Protection
IP65(Front)
Power
Input Voltage: 24Vdc(20~28Vcd)
Power Consumption: 40W or less

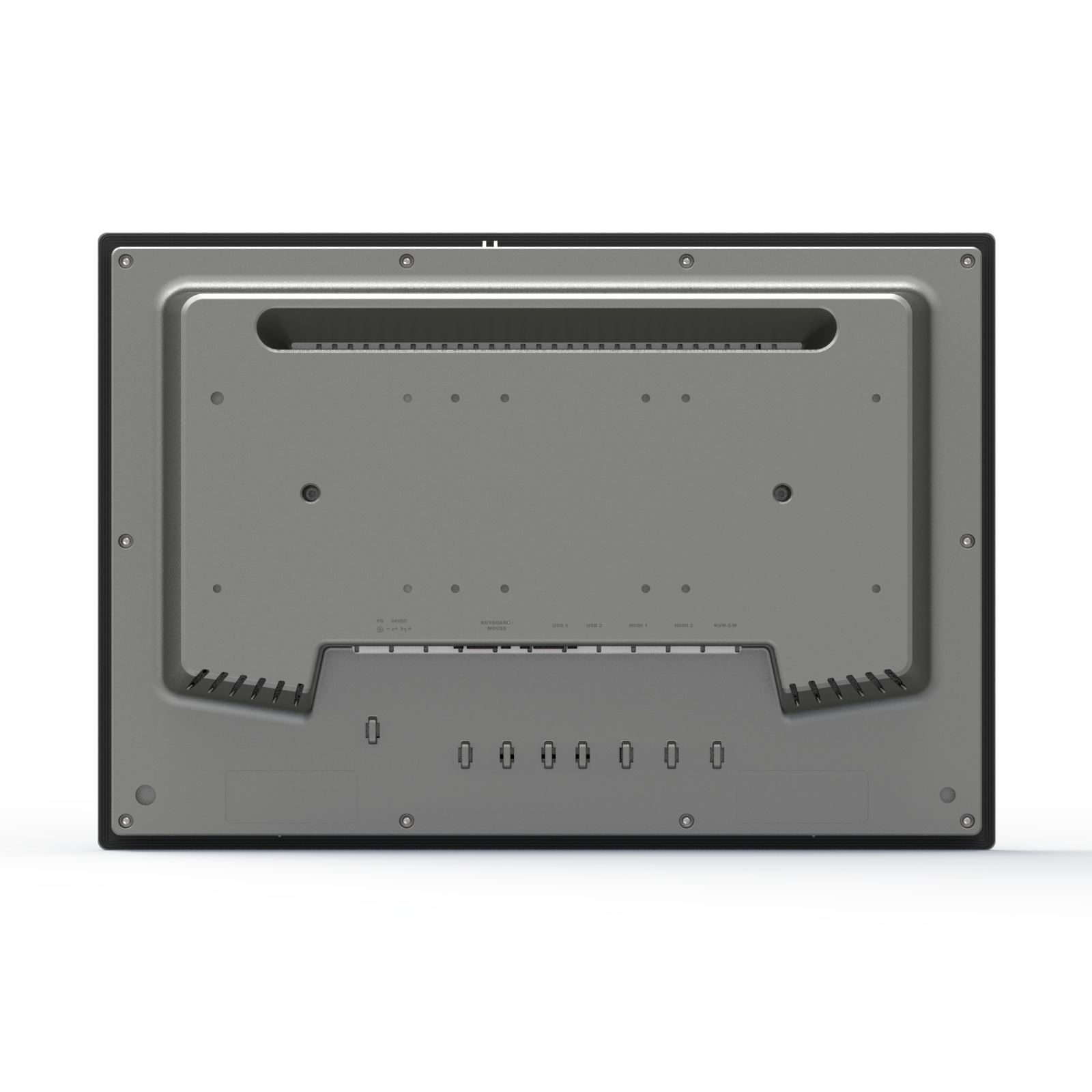

VESA Wall Mount Hole
100 x 100
Structure
Panel Cut: 463 x 314
Dimension: 477.4 x 328.4 x 63.5
Weight: 5.0㎏
Case: Aluminum + Plastic
Downloads
English
Korean
