Examples of Log Settings, Log View Object, Record Graph, and Log Upload Features
2025-05-22
- Attachment
- Log_1.4.11.TDS Download
Description
This is an example of log settings, Log View Object, Record Graph, and log data upload features.
* The log function reads the address values from the PLC and stores them in the memory of TOP along with the date.
This project was created using TOP Design Studio version 1.4.11.
* The log function reads the address values from the PLC and stores them in the memory of TOP along with the date.
This project was created using TOP Design Studio version 1.4.11.

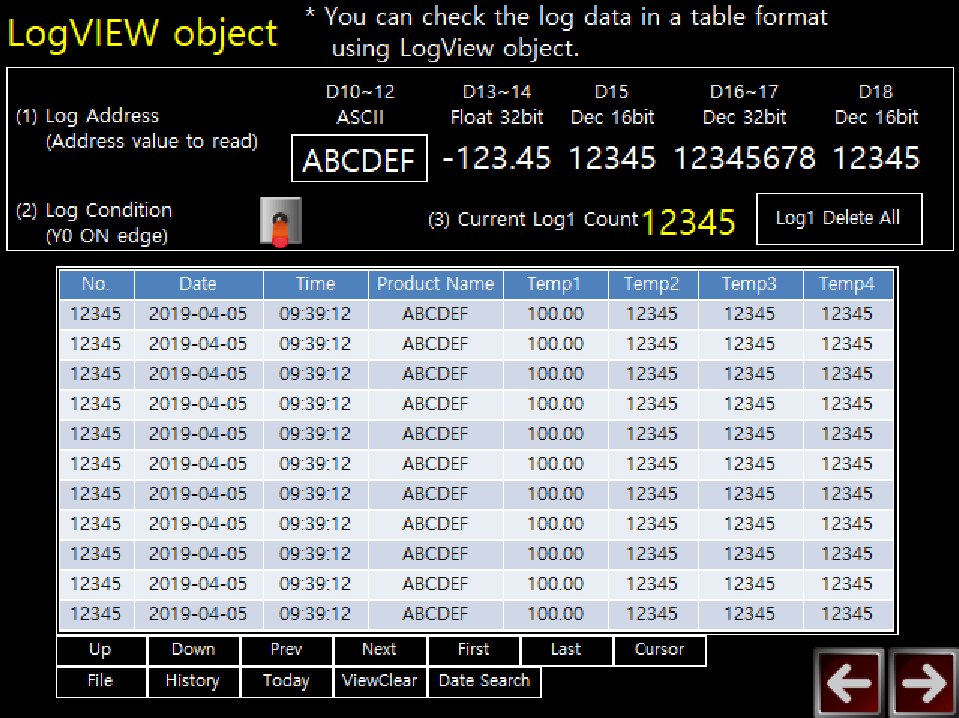

The image below shows part of the screen from the attached file.
